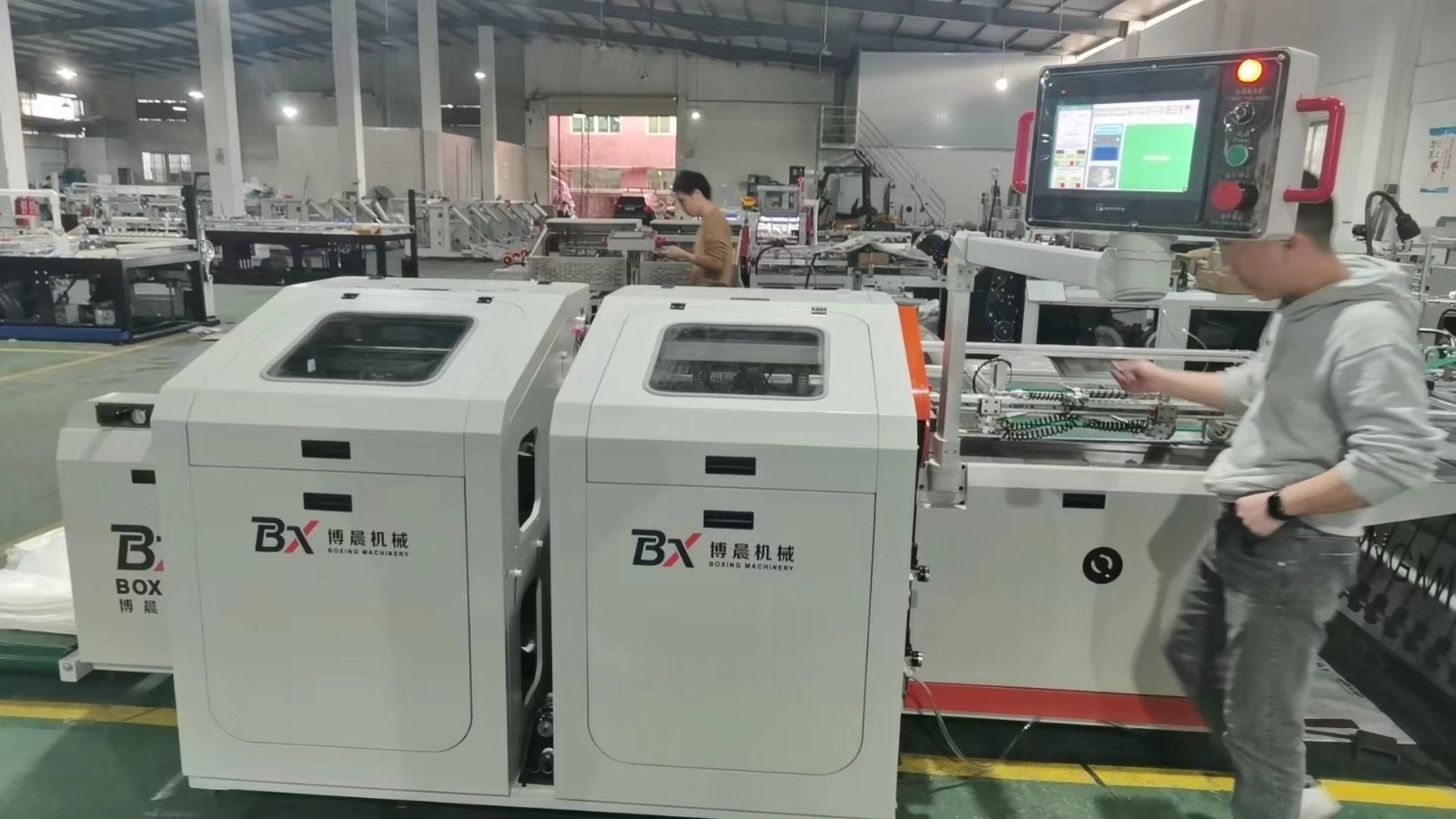

BX-LAH650 Ultrasonic Bag Mouth-Liner Hemming Machine For Woven Bags

BX-CISH650编织袋自动圈口机
  • BX-LAH650 Ultrasonic Bag Mouth-Liner Hemming Machine For Woven Bags

Short Description:

Ultrasonic Bag Mouth Aligning and Hemming Machine (Model No.: BX-LAH650), is designed for Automatic Bag Mouth Alignment, Folding & Hemming Process with flexible applications for both Liner Inserted Bags and Normal Bags (Without Liner Insertion). Our Ultrasonic technology is leading in China and using imported technology products to increase mechanical stability.



Product Detail

Product Tags

Video

Technical parameters

1. The Next Section adopts ultrasonic hemming method, which has no residual heat residue and will not scab or fall off over time, meeting the requirements of food grade packaging bags;

2. Low production temperature will not cause environmental pollution (temperature and smoke) in production;

3. The maintenance cycle of Ultrasonic is short, and there is no need to clean the plastic thermal adhesive on the cutting kinfe

4. Ultrasonic is more energy-efficient than Heat Hemming.

Specifications

Item

Parameter

Fabric Width

380-450mm

Fabric Length

500-1200mm

Liner longer than Outer Bag

3cm-10cm

PE Film Thickness

≥0.015-0.05mm

Machinesion Speed

15-18pcs/min

Power connection

15KW

Voltage

Customer specified

Air Supply

≥0.3m³/min

Machine weight

About 2.1T

Product Details

Application: 1.With Liner Inserted Bag / And Also Normal Bags Without Liner Insertion.

2.With Laminated Woven Fabric /And Also Non-Laminated Woven Fabric.

Price: Negotiable

Voltage: 380V 50Hz, the voltage can be as local demand

Payment term: TT,L/C

Delivery date: Negotiable

Packing: export standard

Market: Middle East/ Africa/Asia/South America/Europe/North America

Warranty: 1 year

MOQ: 1 set


Applications


Feature

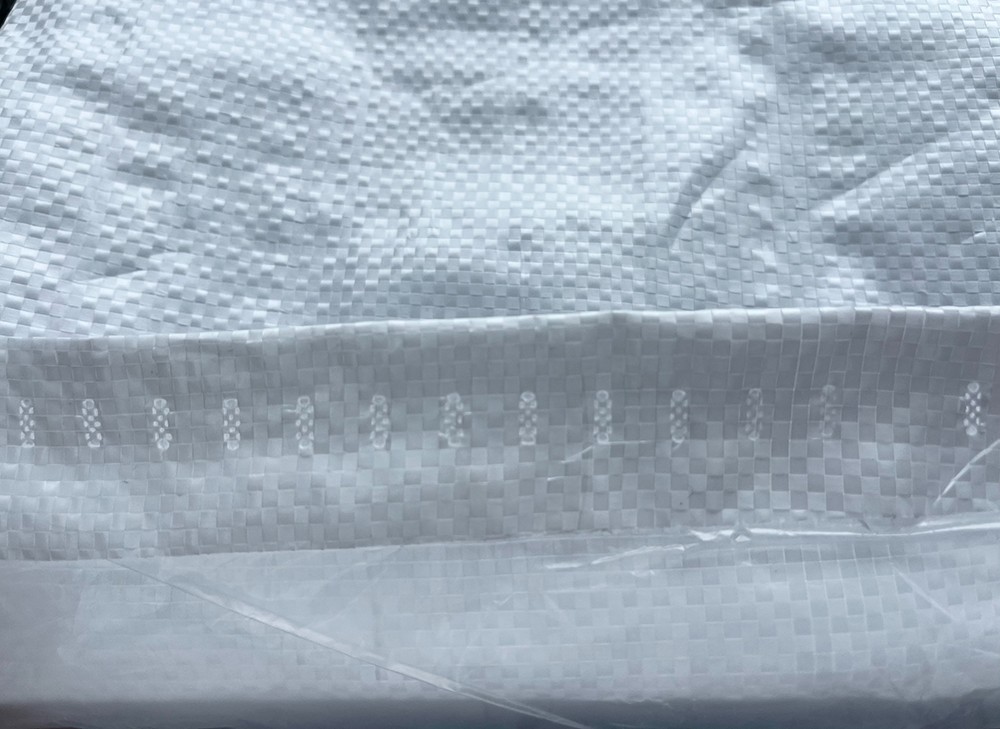

1. Applicable for laminated or non-laminated bag,with liner or non-liner woven bag.

2. Auto align with PE liner and outer bag

3. Visual interface operation system

4. Full sets of Mitsubishi Electrical system

5. Hemmed or not hemmed are OK.

6.Please ensure the finished bag top can be opened easily,and the hole should be at least 8cm from the bag top.
